JSP Implicit ObjectsS2C Home « JSP Implicit Objects

We know from studying the The Servlet LifeCycle lesson that all servlets have access to ServletConfig & ServletContext objects and we have learnt about a JSP being translated into a servlet which means that JSP servlets also have access to these objects. We then examined the container generated _jspService() lifecycle method which gives us access to the HttpServletRequest & HttpServletRequest objects. We can also access session scoped attributes after creating a HttpSession object.

When creating JSP pages we have access to all the above objects and several more, all of which are known collectivelty as implicit objects. The table below shows all the implicit objects available to JSP authors and links to the lessons in which the various types involved are discussed:

Implicit Object Type Lesson
All JSP Pages
applicationjavax.servlet.ServletContextServlets 2.5 Basics - ServletConfig & ServletContext
configjavax.servlet.ServletConfigServlets 2.5 Basics - ServletConfig & ServletContext
outjavax.servlet.jsp.JspWriterThis lesson
pagejava.lang.ObjectJava5 - OO Concepts - The Object Superclass
pageContextjavax.servlet.jsp.PageContextThis lesson
requestjavax.servlet.http.HttpServletRequestServlets 2.5 Basics - Request & Response
responsejavax.servlet.http.HttpServletResponseServlets 2.5 Basics - Request & Response
sessionjavax.servlet.http.HttpSessionServlets 2.5 Intermediate - Session Management Part 3
Error JSP Pages Only
exceptionjava.lang.ThrowableThis lesson

Apart from the exception which is only available in JSP error pages all the other implicit objects are always available for use within scriptlets and scriptlet expressions through scripting variables that are declared implicitly at the beginning of the JSP page. We have access to these objects via boilerplate code that gets generated at translation time when our JSP page gets translated into Servlet implementation code. The following code snippet highlights the implicit objects being created and initialized at the start of the _jspService() method and is taken from translation of the first.jsp JSP page and is done using the Tomcat container and will differ for other containers. The translated code for Tomcat can be found within a subdirectory of the work directory within your Tomcat installation. On my machine the full path is:

C:\apache-tomcat-6.0.37\work\Catalina\localhost\firstjsp\org\apache\jsp\


...
public void _jspService(HttpServletRequest request, HttpServletResponse response)
        throws java.io.IOException, ServletException {

    PageContext pageContext = null;
    HttpSession session = null;
    ServletContext application = null;
    ServletConfig config = null;
    JspWriter out = null;
    Object page = this;
    JspWriter _jspx_out = null;
    PageContext _jspx_page_context = null;


    try {
      response.setContentType("text/html");
      pageContext = _jspxFactory.getPageContext(this, request, response,
      			null, true, 8192, true);
      _jspx_page_context = pageContext;
      application = pageContext.getServletContext();
      config = pageContext.getServletConfig();
      session = pageContext.getSession();
      out = pageContext.getOut();
      ...

application Implicit Objectgo to top of page Top

The application implicit object is of type javax.servlet.servletContext and saves you the trouble of creating your own application scoped variable. You can use the application implicit object anywhere you would use the ServletContext object in a regular Servlet such as setting application wide atributes.

The following code snippet shows some application implicit object use:


<%-- Using application Implicit Object --%>
<% application.setAttribute("name", "joe"); %>
<%= application.getAttribute("name") %>

For more information on the javax.servlet.servletContext interface and the methods available take a look at the ServletContext Interface section.

config Implicit Objectgo to top of page Top

The config implicit object is of type javax.servlet.servletConfig and can be used to access ServletConfig methods for such things as getting initialisation parameters.

The following code snippet shows some config implicit object use:


<%-- Using config Implicit Object --%>
<%= config.getInitParameter("email") %>

For more information on the javax.servlet.ServletConfig interface and the methods available take a look at the ServletConfig Interface section.

out Implicit Objectgo to top of page Top

The out implicit object is of type javax.servlet.jsp.JspWriter and not java.io.PrintWriter as you might expect, although the javax.servlet.jsp.JspWriter class does emulate many of the features of the java.io.PrintWriter class. The main reason that the out implicit object uses javax.servlet.jsp.JspWriter is for that classes buffering capabilities which are functionally similar to those of the java.io.BufferedWriter class.

The following code snippet shows some out implicit object use:


<%-- Using application Implicit Object --%>
<%! String strArray[] = {"one", "aa", "c", "rt", "je"}; %>
<% out.print("Value of position 5 (index 4) : " + strArray[4]); %>

page Implicit Objectgo to top of page Top

The page implicit object is of type java.lang.Object and is a reference to the JSP page itself and so is not generally used by us programmers to get to any methods.

For more information on java.lang.Object go to the Java5 - OO Concepts - The Object Superclass.

pageContext Implicit Objectgo to top of page Top

The pageContext implicit object is of type javax.servlet.jsp.PageContext and is the container's implementation of the JSP page in question. The pageContext implicit object allows us to access all the regular Servlet objects via the getServletConfig, getServletContext, getServletRequest and getServletResponse methods. Although these objects can be more readily accessed via their implicit objects, these methods allow Servlet objects to be accessed using the pageContext in tandem with the Expression Language as we will discover in the Expression Language 2.1 section.

The pageContext implicit object also allows access to a new scope that comes with JSP pages and which is known unsuprisingly as page scope. Page scope is the narrowest of the four scopes available and attributes stored within this scope are only available within the same JSP page itself. For a refresher on using the request, session and context scopes see the Servlets 2.5 - Attributes and Scope lesson.

The value of scope held within the PageContext type can be one of the following constants: PAGE_SCOPE, REQUEST_SCOPE, SESSION_SCOPE or APPLICATION_SCOPE.

You can also work with attributes from page scope, or one of the other scopes, using one of the overloaded attribute methods. The following code snippet shows signatures for the overloaded getAttribute() method:


// Page scope attribute
public abstract Object getAttribute(String name)
// Named scope attribute
public abstract Object getAttribute(String name, int scope)

If no scope is specified then attributes from the page scope will be actioned. The following code snippet shows some pageContext implicit object use:


<%-- Using pageContext Implicit Object --%>
<%
    pageContext.setAttribute("name", "charlie", PageContext.APPLICATION_SCOPE);
    pageContext.setAttribute("name", "marlie");
    out.print("Application attr: " + pageContext.getAttribute("name", PageContext.APPLICATION_SCOPE));
    out.print(" | Page attr: " + pageContext.getAttribute("name"));
%>

request and response JSP Implicit Objectsgo to top of page Top

The request and response implicit objects are actually passed via parameters to the _jspService() method and are of types javax.servlet.http.HttpServletRequest and javax.servlet.http.HttpServletResponse respectively in the vast majority of cases.

Of course there is nothing to stop you as a coder from creating a JSP page for a protocol other than HTTP by using the javax.servlet.jsp.HttpJspPage interface, that extends the javax.servlet.jsp.JspPage interface, which extends the javax.servlet.Servlet interface. So if for any reason you wanted to write non-HTTP JSP pages, you would implement the javax.servlet.jsp.JspPage interface for the protocol required and this would still get translated into a Servlet. In this scenario your request & response implicit objects are still passed via parameters to _jspService(), but would be of types javax.servlet.ServletRequest and javax.servlet.ServletResponse respectively.

The following code snippet shows some request & response implicit object use:


<%-- Using request Implicit Object --%>
<%= request.getHeader("user-agent") %>

<%-- Using response Implicit Object --%>
<%= response.containsHeader("content-type") %>

For more information on the javax.servlet.http.HttpServletRequest interface and the methods available take a look at the ServletRequest Overview and HttpServletRequest Overview sections.

For more information on the javax.servlet.http.HttpServletResponse interface and the methods available take a look at the ServletResponse Overview and HttpServletResponse Overview sections.

session Implicit Objectgo to top of page Top

The session implicit object is of type javax.servlet.http.HttpSession and can be used to access HttpSession methods to do all the things you would generally do when tracking sessions. Unlike normal Servlets where we have to explicitly create session objects for our servlets this is done implicitly and so every page always comes with a HttpSession object. If your page doesnt require sessions then you have to turn off session creation using a page directive.

The following code snippet shows some session implicit object use:


<%-- Using session Implicit Object --%>
<% session.setAttribute("name", "joe"); %>
<%= session.getAttribute("name") %>
<% session.invalidate(); %>

The following code snippet shows how we stop creation of the session implicit object for a page using the page directive. Running the code will cause an exception as the session implicit object is never created.


<%@ page session="false" %>
<%-- Next method will cause error as session never created --%>
<%= session.isNew() %>

For more information on the javax.servlet.http.HttpSession interface and the methods available take a look at the HttpSession Interface section.

exception Implicit Objectgo to top of page Top

The exception implicit object is of type java.lang.Throwable which is the superclass of all exceptions and can be read about at the Java5 Tutorial site at the following link Java5 - Flow Control - Exception Overview. Unlike the other implicit objects, exception is only available in pages that are designated as error pages and have the isErrorPage page directive set. This directive tells the translator to include the exception implicit object in the generated servlet for the page and is shown in the following code snippet:


<%@ page isErrorPage="true" %>

Pages wishing to use the error page do not call it directly but include the errorPage page directive pointing to the error page required. The URL path can begin with a forward slash making it relative to the context root of the application, or not making it relative to the JSP page. The following code snippet shows an example of using the errorPage page directive:


<%@ page errorPage="/errorjsp/exampleErrorPage.jsp" %>

Coding An Error Pagego to top of page Top

To see the mechanics of how error pages work we will create a couple of JSP pages, one that will produce an error and one that will handle that error, but before we do this lets set up a folder to put the JSPs in.

Within the _JSP folder create a folder for our web application which we will call errorjsp

Within the errorjsp folder we will create a view folder to hold our JSPs.

So after creating these folders your directory structure should look something like the following screenshot:

error JSP directory structure

Coding bad.jspgo to top of page Top

First we will create a simple JSP page that causes an exception when it tries to access a non-existant session and has a page directive pointing to an error page. Note that we have commented out the errorPage page directive.


<%@ page session="false" %>
<%-- <%@ page errorPage="error.jsp" %> --%>
<%-- Next method will cause ArithmeticException: / by zero --%>
<% int a = 5/0; %>

Saving bad.jsp

Ok, with Notepad or a similar text editor cut and paste the above code.

Click file from the toolbar and then click the save option.

In the Save in: tab at the top make sure you are pointing to the C:\_JSP\errorjsp\view folder.

In the File name: text area type bad.jsp.

Change the Save as type: option to All Files as we don't want to end up with a .txt extension and then click the Save button and close the Notepad.

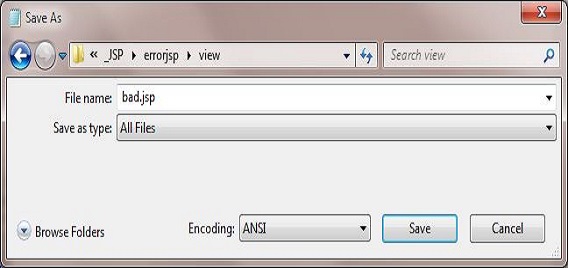

Save bad JSP

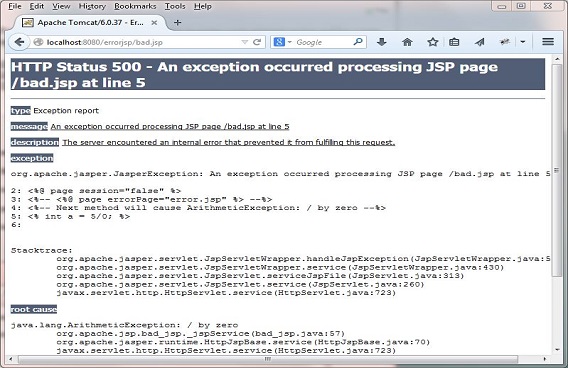

The following screenshot shows what would happen if we were to deploy and run the bad.jsp page, not a very user-friendly experience.

Run bad JSP

Edit the bad.jsp code to uncomment the errorPage page directive as shown below and save the file .


<%@ page session="false" %>
<%@ page errorPage="error.jsp" %>
<%-- Next method will cause error.jsp page to be called --%>
<% int a = 5/0; %>

Coding error.jspgo to top of page Top

Lets now code an error page that bad.jsp will call if we get an error.


<%@ page isErrorPage="true" %>
<!DOCTYPE html>
<html>
  <head><title>JSP Error Page</title></head>
  <body>
    <h1>An error has occured</p>
    <p>The error message is: <%= exception.getMessage() %></p>
    <p>Please contact support on xxx-xxx-xxxx</p>
  </body>
</html>

Saving error.jsp

Ok, with Notepad or a similar text editor cut and paste the above HTML.

Click file from the toolbar and then click the save option.

In the Save in: tab at the top make sure you are pointing to the C:\_JSP\errorjsp\view folder.

In the File name: text area type error.jsp and then click the Save button and close the Notepad.

Change the Save as type: option to All Files as we don't want to end up with a .txt extension and then click the Save button and close the Notepad.

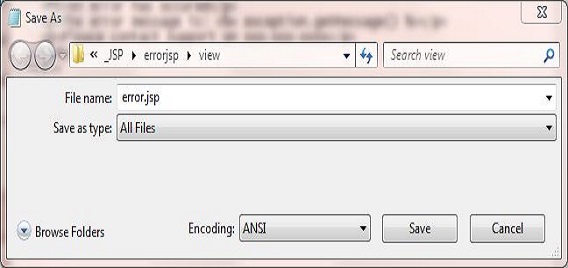

Save Error JSP

Tomcat Deploymentgo to top of page Top

Go to your Tomcat installation which in my case is:

C:\apache-tomcat-6.0.37\webapps\

Within the webapps folder create a folder for our web application called errorjsp

Copy the bad.jsp and error.jsp files from our development environment into the errorjsp folder.

Testing Our Error JSPgo to top of page Top

Open a command prompt and change the directory to the location of our Tomcat 6 bin directory and then type in startup (Windows 7) or startup.sh (Linux/Unix/OSX). Press Enter and the Tomcat 6 server should open up in a new window.

You can also start up Tomcat by double-clicking the startup batch file within your Tomcat /bin folder.

With Tomcat up and running type the following into your web browser address bar and press enter:

  http://localhost:8080/errorjsp/bad.jsp

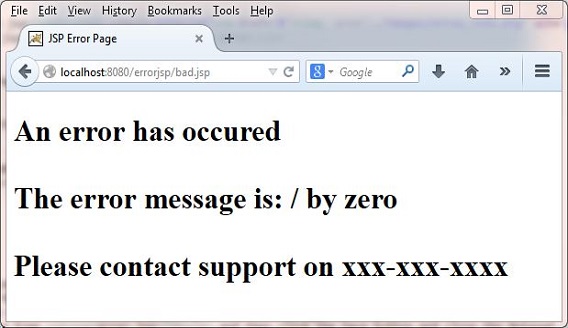

The web browser should be directed to the bad.jsp JSP within Tomcat, execute and then call the error.jsp page producing a screen that looks like the following:

run error JSP

As you can see this is more user-friendly and can be tailored to fit in with the rest of the web application.

Lesson 4 Complete

In this lesson we looked at implicit objects which allow us to access the Servlet and JSP objects created by the container.

What's Next?

In the next lesson we take a much closer look at the page and include directives.
