In the previous two lessons we saw code examples of implementing the javax.servlet.Servlet interface and extending the javax.servlet.GenericServlet abstract class. Although it's unlikely we will have a need to do this in the real world, it gave us an opportunity to use some of the methods of these types and also get a close look at the lifecycle of a servlet. What we haven't discussed in any great detail yet are the request and response objects we have been using and how the service() method always runs in its own thread. In this lesson we review these subjects in much greater detail.

In all the code examples seen so far we have used an override of the service() method to place our HTML in. The arguments to the service() method are the ServletRequest and ServletResponse objects. These objects are created by the container, which provides implementations of the javax.servlet.ServletRequest and javax.servlet.ServletResponse interfaces. The ServletRequest object provides methods for request data that includes parameter name and values, attributes, and an input stream that can be utilised by a servlet. The ServletResponse object provides methods that help in sending a response to a client from a servlet. Both of these objects are generic and protocol independent.

The vast majority of servlets work with the HTTP protocol and all our servlets from now on will be using HTTP. Because HTTP is the de facto protocol of choice there is a complete package, javax.servlet.http, devoted to HTTP specific servlets. We will take advantage of the servlet API by extending the javax.servlet.http.HttpServlet abstract class, which extends the GenericServlet abstract class, with our own customized classes for the business processes required.

Closer inspection of the HttpServlet class reveals that all methods have arguments for HttpServletRequest and HttpServletResponse objects apart from public void service(ServletRequest req, Response resp). What happens is the public void service(ServletRequest req, Response resp) of the HttpServlet class overrides the method from the GenericServlet class and downcasts the ServletRequest and ServletResponse objects to HttpServletRequest and HttpServletResponse objects. This method then dispatches client requests to the protected void service(HttpServletRequest req, HttpServletResponse resp) method.

The protected void service(HttpServletRequest req, HttpServletResponse resp) method delegates servicing to one of the HTTP doXXX() methods, dependant upon the incoming HTTP method passed with the client request. For this reason, when we extend the HttpServlet class, there is rarely a need to override the service() method as we have done in our previous code examples. All our servlet needs to do is override the doXXX() method with our business code to service the request from the client.

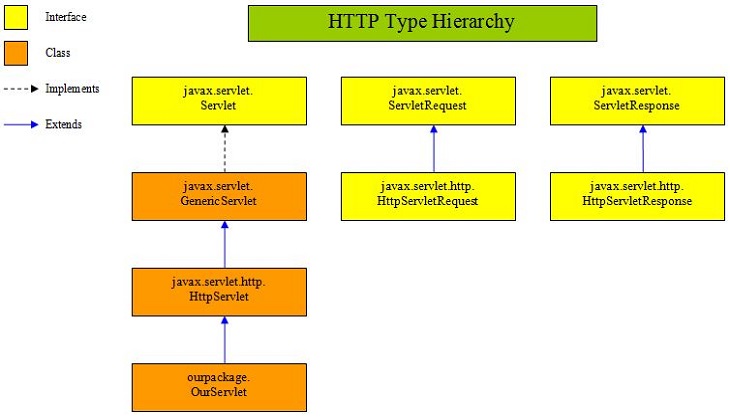

The diagram below illustrates the HTTP type hierarchy we have just discussed:

HTTP Servlet Hierarchy

One Thread Per Requestgo to top of page Top

We mentioned in Java EE5 & Servlets - Using A Web Container, the benefits a web container gives us. One of the benefits was multithreading and how the container creates a new java thread every time a servlet request is received. But how does this work in practice, what do we actually mean by a new thread for every request and what happens when a client makes multiple requests? As far as the container is concerned every request is started in a new thread regardless of whether its from the same client source or divergent client sources. What this means for our servlet classes is that every incoming request gets its own stack in which the service() method gets invoked. After running the servlets service() method, which delegates processing to the appropriate doXXX() method, the thread completes in a tidy manner.

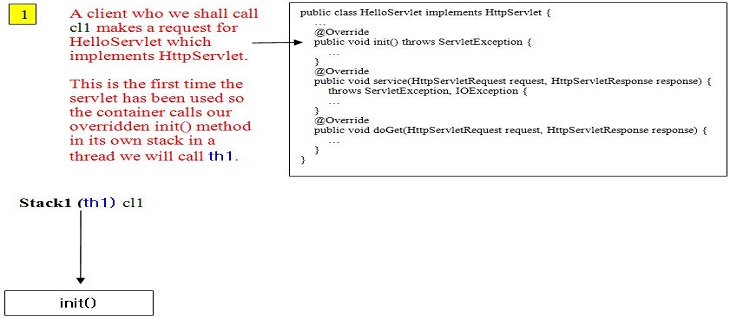

The following slideshow shows three HTTP GET requests from three clients, that points to a servlet on the server that extends HttpServlet and the steps involved through to the HTTP response. Press the button below to step through the slideshow:

svsync 1 svsync 2 svsync 3 svsync 4 svsync 5 svsync 6

Press the button below to cycle through the 'One Thread Per Request' slideshow.

ServletRequest Overviewgo to top of page Top

Whatever container you are using it must provide an implementation of the ServletRequest interface and provide a ServletRequest object. In this section we will tabularise some of the methods of the ServletRequest interface and describe what they do. There are a lot of methods in the ServletRequest interface that we can split into functional groups which cover client information, request body, request dispatching, request parameters, request protocol, request scoped attributes, resource information and transmission data.

The table below shows the declarations of some of the more common methods in the ServletRequest interface, which we cover on the site, split into their respective functional groups:

Method Declaration Description
Request Dispatching
RequestDispatcher getRequestDispatcher
  (java.lang.String path)
Returns a RequestDispatcher object that operates as a wrapper for the resource located at specified path.
Request Parameters
java.lang.String getParameter(java.lang.String name)Returns the value of specified request parameter name as a String if the parameter exists, or null if not.
java.util.Map getParameterMap()Returns the parameters of this request as a java.util.Map.
java.util.Enumeration getParameterNames()Returns a java.util.Enumeration of String objects containing names of the request parameters for this request.
java.lang.String[] getParameterValues
  (java.lang.String name)
Returns the values of specified request parameter name as an array of String objects if the parameter exists, or null if not.
Request Scoped Attributes
java.lang.Object getAttribute(java.lang.String name)Returns the value of named attribute as type Object , or null if no attribute with specified name exists.
java.util.Enumeration getAttributeNames()Returns an Enumeration containing names of all the attributes available to this request.
void removeAttribute(java.lang.String name)Remove attribute with specified name from this request.
void setAttribute
  (java.lang.String name, java.lang.Object value)
Store attribute with specified name in this request.

Use the links in the table above to go to example code of the method in question. For more information on these and the other methods in the ServletRequest interface follow the link to the official site at the end of the lesson.

ServletResponse Overviewgo to top of page Top

The container must also provide an implementation of the ServletResponse interface as well as creating a ServletResponse object. In this section we will tabularise the methods of the ServletResponse interface and describe what they do. The methods in the ServletResponse interface can be split into three functional groups which cover response protocol, response streams and transmission data.

The table below shows the declarations of all the methods in the ServletResponse interface, split into their respective functional groups:

Method Declaration Description
Response Protocol & Transmission Data
java.lang.String getCharacterEncoding()Returns the name of the character encoding (MIME charset) used for this client response.
java.lang.String getContentType()Returns the content type used for the MIME body sent in this response, or null if not specified.
java.util.Locale getLocale()Returns locale specified for this client response.
void setCharacterEncoding(java.lang.String charset)Sets character encoding (MIME charset) for client response.
void setContentType(java.lang.String type)Sets the content type of the client response, if the response has not been committed to be sent yet.
void setLocale(java.util.Locale locale)Sets specified locale of client response, if the response has not been committed to be sent yet.
void setContentLength(int length)Sets specified length of content body in client response. For HTTP servlets this is the HTTP Content-Length header.
Response Streams
void flushBuffer()Forces any content in the buffer to be written to the client and commits the response.
int getBufferSize()Returns actual buffer size used for the client response.
ServletOutputStream getOutputStream()Returns a ServletOutputStream object suitable for writing binary data in the client response.
java.io.PrintWriter getWriter()Returns a PrintWriter object suitable for sendint character text to the client response.
boolean isCommitted()Returns a boolean indicating if the client response has been committed.
void reset()Clears any data existing in the buffer as well as the status code and headers.
void resetBuffer()Clears any data existing in the buffer without clearing headers or status code.
void setBufferSize(int size)Sets preferred buffer size for the response body.

Use the links in the table above to go to example code of the method in question. For more information on the methods in the ServletResponse interface follow the link to the official site at the end of the lesson.

HttpServletRequest Overviewgo to top of page Top

When using HTTP we extend the ServletRequest interface with the HttpServletRequest interface so we can create HTTP servlets. Whatever container you are using it must provide an implementation of the HttpServletRequest interface and provide a HttpServletRequest object. In this section we tabularise some methods of the HttpServletRequest interface and describe what they do.

There are a lot of methods in the HttpServletRequest and all apply specifically to the HTTP protocol, whereas the methods in the ServletRequest interface are more generic and can be used with any protocol. We can split the HttpServletRequest methods into functional groups which cover request headers, request protocol data, request path, security related and session management.

The table below shows the declarations of some of the more common methods in the HttpServletRequest interface, which we cover on the site, split into their respective functional groups:

Method Declaration Description
Request Headers
java.lang.String getHeader(java.lang.String name)Returns a String object containing the value of the specified name request header.
java.util.Enumeration getHeaderNames()Returns an Enumeration of String objects of all header names this request contains.
java.util.Enumeration getHeaders
  (java.lang.String name)
Returns an Enumeration of String objects of all values for the specified name request header.
Request Protocol Data
java.lang.String getMethod()Returns name of HTTP method this request started from.
Request Path
java.lang.String getQueryString()Returns query string that is contained in the request URL after the path, or null if none present.
java.lang.String getRequestURI()Returns complete request URL from the protocol name up to, but excluding, the query string.
Security Related
Cookie[] getCookies()Returns an array of all javax.servlet.http.Cookie objects the client sent with this request.
Session Management
HttpSession getSession()Returns current HttpSession associated with this request. If no current session exists will return a new session.
HttpSession getSession(boolean create)Returns current HttpSession associated with this request. If no current session and create is set to true will return a new session, otherwise null.

Use the links in the table above to go to example code of the method in question. For more information on these and the other methods in the HttpServletRequest interface follow the link to the official site at the end of the lesson.

HttpServletResponse Overviewgo to top of page Top

Whatever container you are using it must provide an implementation of the HttpServletResponse interface and provide a HttpServletResponse object. In this section we will tabularise the methods of the HttpServletResponse interface and describe what they do. The methods in the HttpServletResponse can be split into four functional groups which cover cookies, HTTP status codes and redirection, response headers and URL rewriting.

The table below shows the declarations of all the non-deprecated methods in the HttpServletResponse interface split into their respective functional groups:

Method Declaration Description
Cookies
void addCookie(Cookie cookie)Adds specified cookie to the client response.
HTTP Status Codes and Redirection
void sendError(int sc)Clears the buffer and sends the client an error response using the specified sc status code.
void sendError(int sc, java.lang.String msg)Sends the client an error response using the specified sc status code and msg message.
void sendRedirect(java.lang.String location) Sends the client a temporary redirect response using the specified location redirect location URL.
void setStatus(int sc)Sets the status code for this client response.
Response Headers
void addDateHeader(java.lang.String name, long date)Adds a response header with specified name and date.
void addHeader
  (java.lang.String name, java.lang.String value)
Adds a response header with specified name and value.
void addIntHeader(java.lang.String name, int value)Adds a response header with specified name and int.
boolean containsHeader(java.lang.String name)Returns a boolean dependendant upon specifed name response header having been already set.
void setDateHeader(java.lang.String name, long date)Sets a response header with specified name and date.
void setHeader
  (java.lang.String name, java.lang.String value)
Sets a response header with specified name and value.
void setIntHeader(java.lang.String name, int value)Sets response header with specified name and value.
URL Rewriting
java.lang.String
  encodeRedirectURL(java.lang.String url)
Encodes specified url for use in the sendRedirect() method if encoding is needed or returns the URL unchanged.
java.lang.String encodeURL(java.lang.String url)Encodes specified url by including the session ID in it if encoding is needed or returns the URL unchanged.

Use the links in the table above to go to example code of the method in question. For more information on the methods in the HttpServletResponse interface follow the link to the official site at the end of the lesson.

Extending HttpServletgo to top of page Top

Extending the HttpServlet class has several advantages over extending the GenericServlet class when you are working with the HTTP protocol. As mentioned above the public void service(ServletRequest req, Response resp) of the HttpServlet class overrides the method from the GenericServlet class and downcasts the ServletRequest and ServletResponse objects to HttpServletRequest and HttpServletResponse objects. This method dispatches requests to the protected void service(HttpServletRequest req, HttpServletResponse resp) method which then delegates servicing to one of the HTTP doXXX() methods, dependant upon the incoming HTTP method passed with the client request.

In almost all cases you will override either the doGet() or doPost() method or both of them; the doGet() method being the default. The following code example is our first look at extending the HttpServlet class with our own custom HTTP servlet.

Coding The DDgo to top of page Top

Within the _ServletsJSP folder create a new folder for the web application we will create in this lesson and call it sayings

Within the sayings folder create separate folders to hold our DD, source files and our compiled byte code and called dd, src and classes. Within the src folder create a subfolder called controller.

So after creating these folders your directory structure should look something like the following screenshot:

parms directory structure

There are no DD entries for this application that we haven't seen already.


<?xml version="1.0" encoding="UTF-8"?>
<web-app xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
                             http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee" version="2.5">
   <servlet>
      <servlet-name>OldSayings</servlet-name>
      <servlet-class>controller.HttpServletDemoServlet</servlet-class>
   </servlet>
   <servlet-mapping>
      <servlet-name>OldSayings</servlet-name>
      <url-pattern>/sayings</url-pattern>
   </servlet-mapping>
</web-app>

Save the web.xml file in the DD folder.

Coding The Servletgo to top of page Top

We are now ready to code up a servlet that extends the javax.servlet.http.HttpServlet class, so cut and paste the following code into your text editor and save it in the   c:\_ServletsJSP\sayings\src\controller directory.


package controller;
// I/O Imports
import java.io.IOException;
import java.io.PrintWriter;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class HttpServletDemoServlet extends HttpServlet {

    private static final long serialVersionUID = 871964L;

    @Override
    public void doGet(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {
        // Create a table of sayings as a response
        response.setContentType("text/html");
        PrintWriter writer = response.getWriter();
        writer.print("<html><head></head>" +
                "<body><h1>Sayings</h1><table border=\"2\">" +
                "<tr><td>A stitch in time saves nine.</td>" +
                "<td>To many cooks spoil the broth.</td></tr>" +
                "<tr><td>The early bird catches the worm.</td>" +
                "<td>Blood is thicker than water.</td></tr>" +
                "</table></body></html>");
    }
}

The difference with this servlet from previous examples is that we overriding one of the doXXX() methods instead of the service() method as we have done in all previous examples. The other dissimilarities are the request and response objects are now HTTP specific and we now extend HttpServlet; apart from this the servlet is very similar to those seen before.

Compiling The Servletgo to top of page Top

Open your command line editor:

Change to directory  c:\_ServletsJSP\sayings\src\controller

Compile HttpServletDemoServlet.java using the java compiler with the -cp and -d options as below, making sure you change apache-tomcat-6.0.37 to wherever you downloaded Tomcat to.

  javac -cp c:\apache-tomcat-6.0.37\lib\servlet-api.jar -d ..\..\classes HttpServletDemoServlet.java

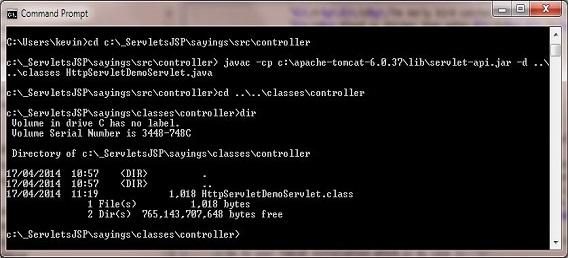

The following screenshot shows that we get a clean compile and also the HttpServletDemoServlet class now compiled into the classes\controller directory.

compile HttpServletDemoServlet class

Tomcat Deploymentgo to top of page Top

Go to your Tomcat installation which in my case is:

C:\apache-tomcat-6.0.37\webapps\

Within the webapps folder create a folder for our web application called sayings

Within the sayings folder create the WEB-INF folder.

Copy the web.xml file and the classes directory and contents from our development environment into the WEB-INF folder.

After creating these folders and copying the files from development your Tomcat directory structure within the webapps\sayings folder should look something like the following screenshot:

Tomcat directory structure1
Testing Our Servletgo to top of page Top

Open a command prompt and change the directory to the location of our Tomcat 6 bin directory and then type in startup (Windows 7) or startup.sh (Linux/Unix/OSX). Press Enter and the Tomcat 6 server should open up in a new window.

You can also start up Tomcat by double-clicking the startup batch file within your Tomcat /bin folder.

With Tomcat up and running type the following into your web browser address bar and press enter:

  http://localhost:8080/sayings/sayings

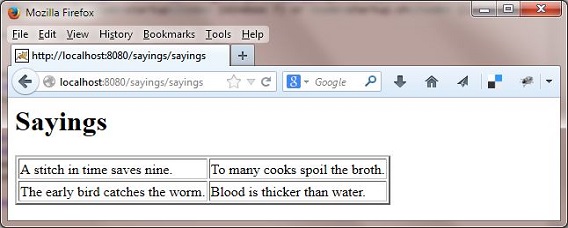

The web browser should be directed to the HttpServletDemoServlet servlet class within Tomcat, execute and produce a screen that looks like the following:

run HttpServletDemoServlet class

As you can see the response from the doGet() method has returned our sayings in a table.

Java Documentationgo to top of page Top

The following link will take you to the online version of documentation for the Servlet API Documentation . Take a look at the documentation for the interfaces we have discussed, which you can find by scrolling down the lower left pane and clicking on a package and then the interface.

Lesson 8 Complete

In this lesson we took a closer look at requests and responses and how a new thread is aloocated each time a request is received from the client.

What's Next?

That's the end of the the Servlet 2.5 Basics section. We start the intermediate lessons by taking a look at HTML forms and how we work with them.
