In the fourth lesson on operators we look at the bitwise logical operators. Bitwise operators perform their operations on the integer types byte, short, int and long and will not work with any other type. These operators are used to manipulate the bits within an integer value, hence the name.

  • Bits with the value 0 are said to be switched off.
  • Bits with the value 1 are said to be switched on.
  • All bitwise conversions get promoted to the int type before conversion so you need to cast back to short and byte when using these types for the target.

Bitwise Logical Operators Overview Top

The bitwise logical operators perform the same operations as the logical operators discussed in the last lesson but work on a bit-by-bit basis on the integer type. The following table shows all possible combinations for a bit using 0 and 1.

Operator Meaning Example Result Notes
&ANDbit a = 0 and bit b = 0
a & b

bit a = 0 and bit b = 1
a & b

bit a = 1 and bit b = 0
a & b

bit a = 1 and bit b = 1
a & b

0


0


0


1
Will turn the result bit to 0 unless both bits are 1.

Useful for switching bits off.
|ORbit a = 0 and bit b = 0
a | b

bit a = 0 and bit b = 1
a | b

bit a = 1 and bit b = 0
a | b

bit a = 1 and bit b = 1
a | b

0


1


1


1
Will turn the result bit to 1 if either bits are 1.

Useful for switching bits on.
^XOR (exclusive OR)bit a = 0 and bit b = 0
a ^ b

bit a = 0 and bit b = 1
a ^ b

bit a = 1 and bit b = 0
a ^ b

bit a = 1 and bit b = 1
a ^ b

0


1


1


0
Will switch the result bit to 1 if only one of the bits is 1 otherwise the result bit is switched to 0.

Useful for highlighting unmatched bits.
~NOTbit a = 0
~a

bit a = 1
~a

1


0
Useful for switching bits to show the compliment of the number.

Let's look at each of the bitwise logical operators in turn to get a feel for how they work.

Bitwise AND Top

The bitwise AND operator can be used for turning non-matched bits off. Lets look at some code to illustrate how this works:


package info.java8;
/*
  Bitwise AND
*/
public class BitwiseAnd {

  public static void main (String[] args) {
    byte a = 97;
    printBits(a);
    byte b = 57;
    printBits(b);
    byte c = (byte) (a & b);
    printBits(c);
  }

  /*
    Loop through input parameter and print out the bits
  */
  public static void printBits (byte aByte) {
    System.out.print("Input param aByte = " + aByte + ": ");

    for (int i = 128; i > 0; i /= 2) {
        if ((aByte & i) != 0) {
            System.out.print("1 ");
        } else {
            System.out.print("0 ");
        }
    }
    System.out.println(" ");
  }
}

Running the BitwiseAnd class produces the following output:

run bitwise and
Screenshot 1. Running the BitwiseAnd class.

Ok there are several new things going on with the above piece of code that we will go through. The first thing to notice is we are casting to a byte when using the bitwise AND (byte c = (byte) (a & b);). All bitwise conversions get promoted to the int type before conversion so we need to cast back to the byte type. Also we are enclosing the bitwise operation in parentheses so the whole expression gets evaluated and not just the a. We are using the printBits method to save replication of code. We pass each variable to this method and print the value. We then use a for loop to print out each bit of the byte variable passed to the method. We will go through the for loop in the Loop Statements lesson but what we are doing here is just dividing 256 by 2 to get to each bit. The 8th bit is used for the sign (0 = positive, 1 negative), hence the actual value range of a byte is 127 to -128 as stated in the Primitive Variables lesson. As you can see from the output the bitwise AND operator switches non-matched bits off.

Bitwise OR Top

The bitwise OR operator can be used for turning non-matched bits on. Lets look at some code to illustrate how this works:


package info.java8;
/*
  Bitwise OR
*/
public class BitwiseOr {

  public static void main (String[] args) {
      byte a = 97;
      printBits(a);
      byte b = 57;
      printBits(b);
      byte c = (byte) (a | b);
      printBits(c);
}

  /*
    Loop through input parameter and print out the bits
  */
  public static void printBits (byte aByte) {
    System.out.print("Input param aByte = " + aByte + ": ");

    for (int i = 128; i > 0; i /= 2) {
        if ((aByte & i) != 0) {
            System.out.print("1 ");
        } else {
            System.out.print("0 ");
        }
    }
    System.out.println(" ");
  }
}

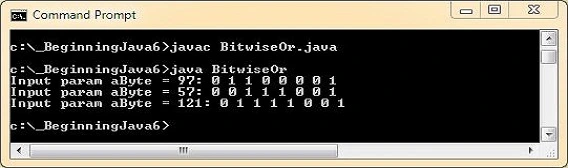

Running the BitwiseOr class produces the following output:

run bitwise or
Screenshot 2. Running the BitwiseOr class.

As you can see from the output the bitwise OR operator switches non-matched bits on.

Bitwise XOR Top

The bitwise XOR operator can be used for highlighting unmatched bits as any matching bits will be switched to 0, whilst unmatched bits are switched to 1. Lets look at some code to illustrate how this works:


package info.java8;
/*
  Bitwise XOR
*/
public class BitwiseXor {

  public static void main (String[] args) {
    byte a = 97;
    printBits(a);
    byte b = 57;
    printBits(b);
    byte c = (byte) (a ^ b);
    printBits(c);
}

  /*
    Loop through input parameter and print out the bits
  */
  public static void printBits (byte aByte) {
    System.out.print("Input param aByte = " + aByte + ": ");

    for (int i = 128; i > 0; i /= 2) {
        if ((aByte & i) != 0) {
            System.out.print("1 ");
        } else {
            System.out.print("0 ");
        }
    }
    System.out.println(" ");
  }
}

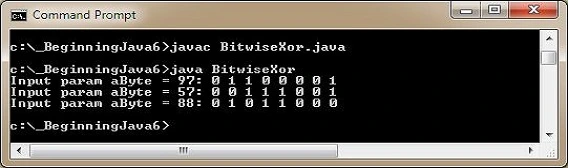

Running the BitwiseXor class produces the following output:

run bitwise xor
Screenshot 3. Running the BitwiseXor class.

As you can see from the output the bitwise XOR operator switches non-matched bits on and matched bits off.

Bitwise NOT Top

The bitwise NOT operator can be used for switching bits to show the compliment of the number. Lets look at some code to illustrate how this works:


package info.java8;
/*
  Bitwise NOT
*/
public class BitwiseNot {

  public static void main (String[] args) {
    byte a = 57;
    printBits(a);
    a = (byte)~a;
    printBits(a);
}

  /*
    Loop through input parameter and print out the bits
  */
  public static void printBits (byte aByte) {
    System.out.print("Input param aByte = " + aByte + ": ");

    for (int i = 128; i > 0; i /= 2) {
        if ((aByte & i) != 0) {
            System.out.print("1 ");
        } else {
            System.out.print("0 ");
        }
    }
    System.out.println(" ");
  }
}

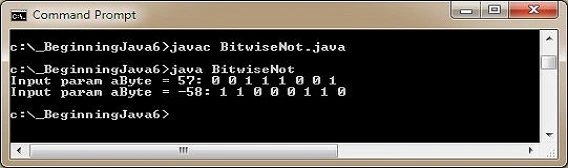

Running the BitwiseNot class produces the following output:

run bitwise not
Screenshot 4. Running the BitwiseNot class.

As you can see from the output the bitwise NOT operator switches bits to show the compliment of the number.

Bitwise Shorthand Assignment Operators Top

The bitwise shorthand assignment operators allow us to write compact code that is implemented more efficiently. When using the bitwise shorthand assignment operators there is no need to cast either.

Operator Meaning Example Result Notes
&=Bitwise ANDbyte a = 74;
a &= 124;
72Will give the Bitwise AND result of 74 and 124.
|=Bitwise ORbyte a = 74;
a |= 124;
126Will give the Bitwise OR result of 74 and 124.
^=Bitwise XORbyte a = 74;
a ^= 124;
54Will give the Bitwise XOR result of 74 and 124.

Related Quiz

Fundamentals Quiz 9 - Bitwise Logical Operators Quiz

Lesson 10 Complete

In this lesson we took a fourth look at the symbols used in Java for mathematical and logical manipulation by looking at bitwise logical operators.

What's Next?

In the next lesson we take our final look at operators when we investigate bitwise shift operators.
